Renon Xtreme Series
Renon Power Afrique’s Xtreme Series is a line of household battery storage systems that enable users to store energy from a photovoltaic system, generator, or grid after connecting to the inverter. These systems feature a stacked installation, which allows for a rapid build to any home, and an improved surge power capacity that brings whole-home backup in a compact system.
The Xtreme Series also includes an intelligent energy management system (EMS) platform, which enables users to customise system behaviour and monitor system operation. This feature helps users to optimise energy usage and save on electricity costs.
Additionally, its stacked design enables simple installation and expansion in any home. The product also adopts a self-created EMS platform from Renon that supports remote monitoring, parameter modification, firmware upgrades, and other intelligent functions.
Overall, Renon Power’s Xtreme Series is a reliable and efficient solution for homeowners looking to store energy and optimize their energy usage.
Special Promotion for Resellers and Installers: Take advantage of our special pricing on all orders placed up until 30 June 2023.
High safety
10 year warranty
8000 life cycles
Household Energy Storage Systems
Renon Xtreme
The Renon Xtreme Series is a household battery storage system that can store energy from various sources such as photovoltaic cells, generators, and the grid when connected to an inverter. Its stacked installation allows for rapid installation in any home, while its improved surge power capacity provides whole-home backup in a compact system.
| LV BESS Specification | 2 Modules | 3 Modules | 4 Modules | 5 Modules | 6 Modules | |
| Nominal Energy (kWh) | 10.24 | 15.36 | 20.48 | 25.6 | 30.72 | |
| Max. Operation Current (A) | 190 | 285 | 300 | 300 | 300 | |
| Peak for 10s (A) | 196 | 294 | 392 | 490 | 500 | |
| Peak for 2s (A) | 240 | 360 | 480 | 500 | 500 | |
| Max. Charging Voltage (Vdc) | 58.4 | |||||
| Discharge Cut-off (Vdc) | 43.2 | |||||
| Nominal Voltage (Vdc) | 51.2 | |||||
| Recommend Charging Voltage (Vdc) | 56.8 | |||||

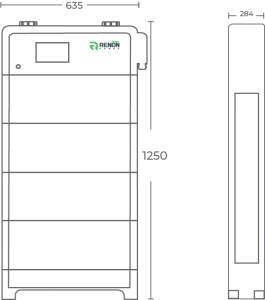

| Dimension (W*D*H) | 635*268*795mm |
25*10.6*31.3in |
635*268*1023mm 25*10.6*40.3in |
635*268*1250mm 25*10.6*49.2in |
635*268*1478mm 25*10.6*58.2im |
635*268*1705mm 15*10.6*67.1in |
| Net Weight (Approximate) | 141kg | 311lb |
194kg 428lb |
247kg 545lb |
300kg 661lb |
353kg 778lb |
Installation
Compatible Inverter List
Download Brochure
